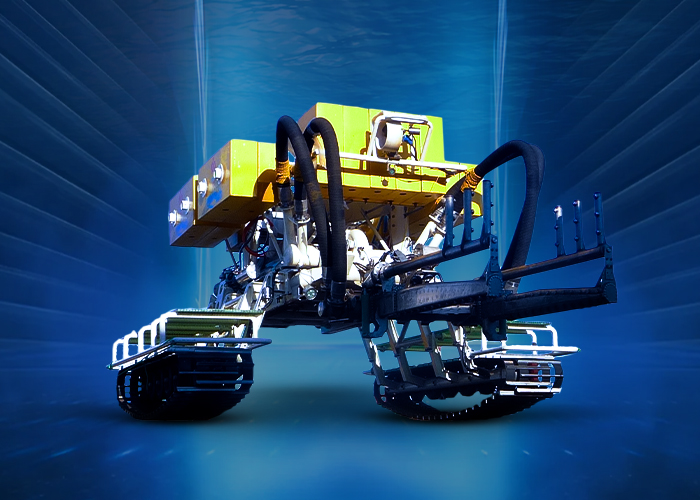

PTM Mantis
The PTM Mantis is a post-trenching machine designed for safe subsea pipeline interventions using a water jetting system. It operates on seabeds with low-resistance soils like clay, silt, and sand, trenching pipelines up to 36” in diameter at depths of 1.5–2.5m, extendable with modifications. Hydraulically self-propelled and surface-controlled, it features modular buoyancy, adjustable trenching booms, and a pipe tracking system for precise positioning, ensuring efficient and damage-free operations.

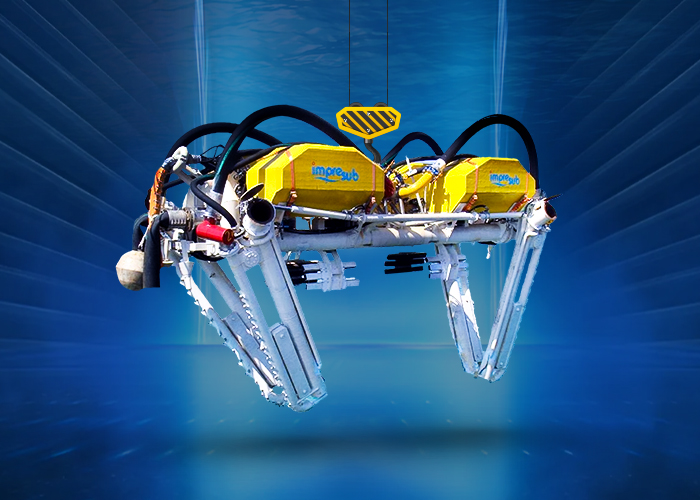

Dragon Fly
The Dragon Fly is a jetting-based post-trenching machine designed for efficient subsea trenching operations. It can handle pipe diameters up to 44 inches and create trenches up to 2 meters deep and 3 meters wide in soils such as clay, silts, and sand. With a maximum soil shear resistance of 200 kPa, it operates at depths of up to 30 meters. The system is installed and recovered using a crane and operates from vessels like AHTS, PSV, DSV, or OSV barges, making it versatile for shallow-water projects.

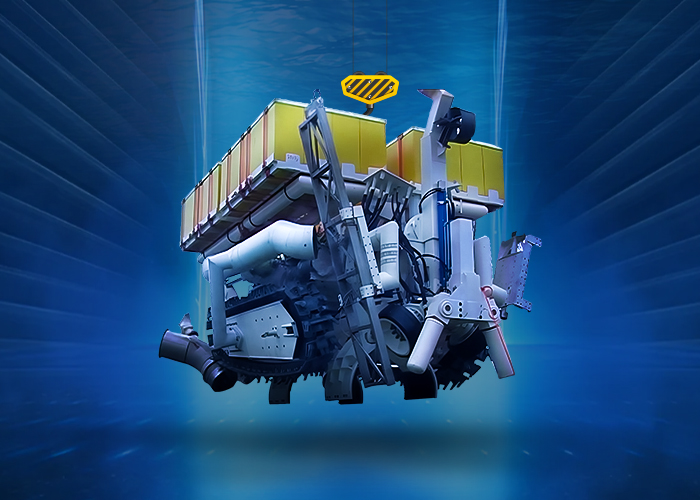

PIPEMOLE
The PipeMole is a mechanical post-trenching machine designed to tackle challenging subsea environments, including rock and clay soils. It accommodates pipe diameters up to 42 inches and creates trenches up to 2 meters deep and 2.3 meters wide. Engineered for maximum soil shear resistance up to 30 MPa, it excels in hard clay and rock formations. Operating at depths up to 50 meters, it is deployed and recovered using a crane. Compatible with vessels like AHTS, PSV, DSV, or OSV barges, it ensures reliable performance in demanding subsea projects.

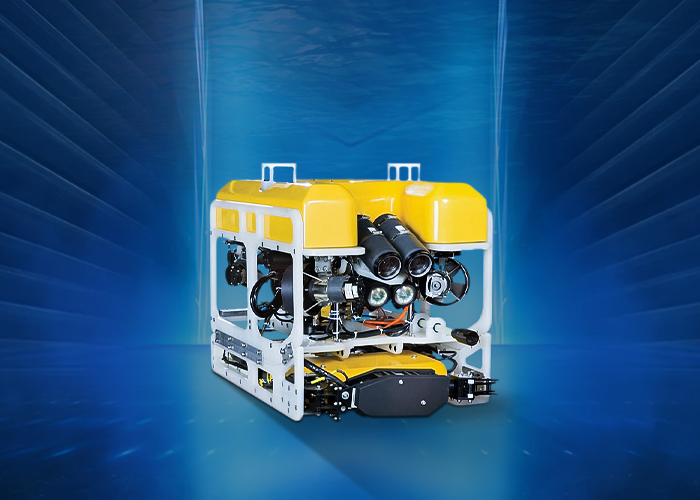

ROV Work Class - Explorer
The Explorer 08 is a reliable work-class ROV designed for subsea operations up to 1,000 meters deep. With advanced hydraulics, high-performance thrusters, and a 200 kg payload, it ensures exceptional maneuverability and efficiency. Features include high-resolution cameras, lighting outputs, obstacle avoidance sonar, and precision manipulators, supporting inspection, maintenance, and repair tasks. A dedicated launch system, control van, and workshop complete this versatile underwater solution.

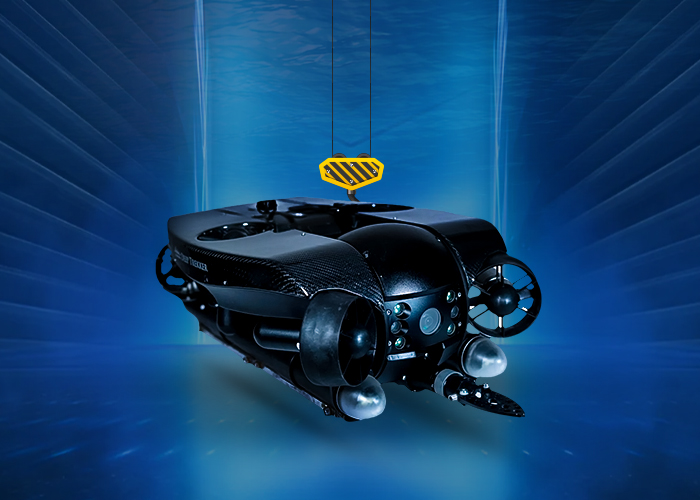

REVOLUTION ROV
The REVOLUTION ROV is a high-performance, mission-ready vehicle for advanced subsea operations. With a 305-meter depth rating, compact design, quick-swap batteries, and autonomous stabilization, it ensures efficiency and reliability. Key features include a 260° Revolving Camera Head, 4K Ultra-HD Camera with LED floodlights, and durable construction for harsh environments. Designed for inspections, surveys, and operational support, it delivers precision and stability in every mission.

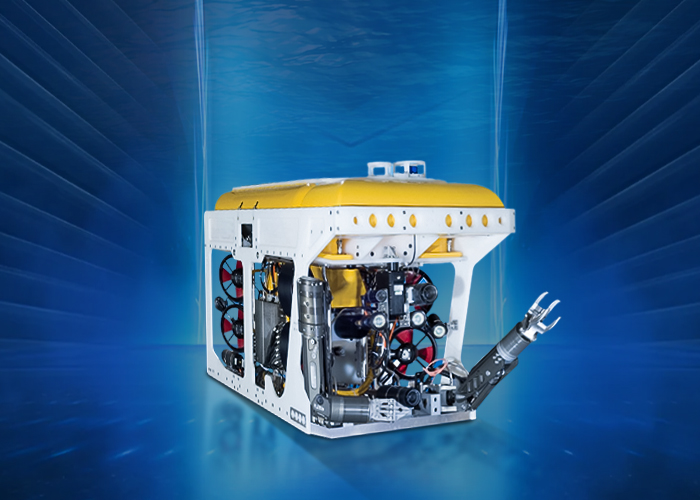

ROV Panther Plus
The Panther Plus 923 is a lightweight work-class ROV for exceptional subsea operations. With a 1,000-meter depth rating, 10 advanced thrusters, 105 kg payload, and durable modular chassis, it ensures superior control and thrust. Equipped with high-resolution cameras, sonar, hydraulic manipulators, and lighting, it excels in inspection, drill support, and survey tasks. Deployed via a Tether Management System (TMS), it delivers precision and efficiency in challenging underwater environments.
ROV Seaeye Tiger
The Seaeye Tiger is a compact, versatile ROV designed for inspections and light intervention tasks at depths of up to 1,000 meters. With 62 kg forward thrust, 30 kg payload, and auto-pilot for depth and heading, it ensures precise maneuverability. Features include two video channels, a color inspection camera, a low-light B/W camera, and dual 150W quartz lights. Operating with a Tether Management System (TMS) and LARS, the Tiger excels in inspections and hull surveys.
ROV Seaeye Surveyor Plus
The Seaeye Surveyor Plus is a high-powered ROV designed for mid-range survey and inspection tasks, with 125 kg forward thrust, 45 kg payload, and a depth rating of 600 m. Equipped with eight vectored horizontal and two vertical thrusters, it supports sonar, cameras, a 5-function manipulator, and autopilot for depth and heading. Durable polypropylene chassis and anodised aluminium housings enhance resilience. Ideal for cost-effective underwater operations.

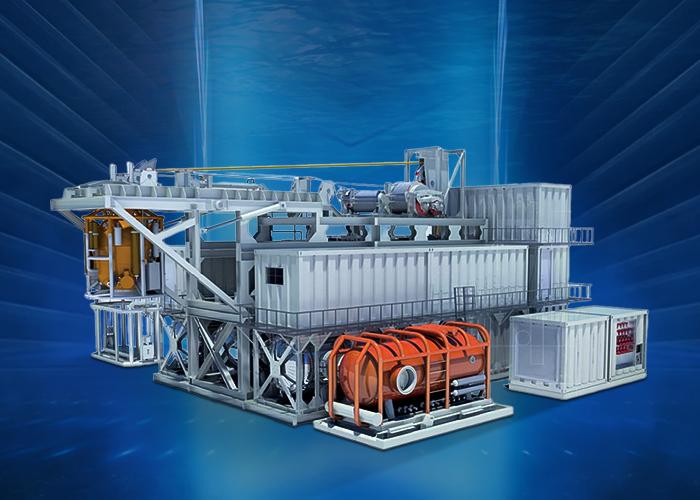

Saturation Diving System Hera 12
The Hera 12 is a DNV-certified saturation diving system rated to 300 msw, supporting 12 divers (9 operational, 3 for decompression). It includes a 3-man diving bell, three hyperbaric chambers (1x6-man, 2x3-man), and a 12-man Hyperbaric Rescue Chamber (HRC) with 72-hour autonomy. The system features redundant hot water units, environmental controls, gas management, and bell handling. It is modular, adaptable, and designed for safety, efficiency, and durability in offshore operations.

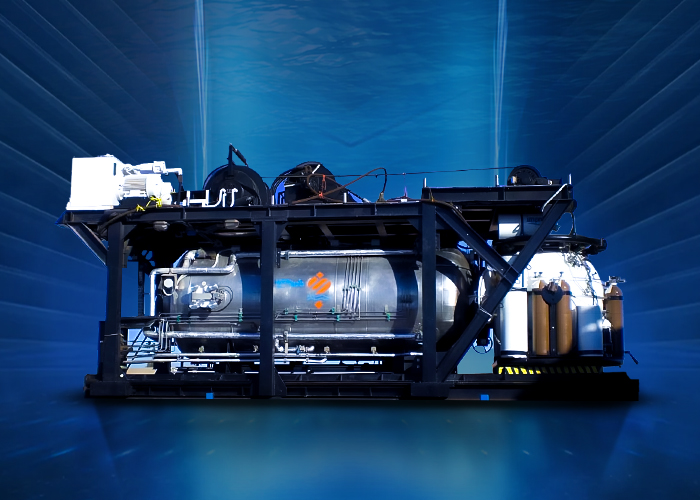

PORTABLE 2-MAN SATURATION
The Package 600 is a portable 2-man saturation diving system designed for bounce diving and short saturation work at depths up to 120 meters. It includes a life support system, dive/sat control cabin, hot water system, emergency generator, and umbilical basket. The diving bell features gas storage, underwater lights, emergency ballast release, and heating coils. Certified by RINA/Lloyd’s, it ensures safety and efficiency. At depths of 20–50 meters, it allows two divers to match the output of multiple scuba divers.
